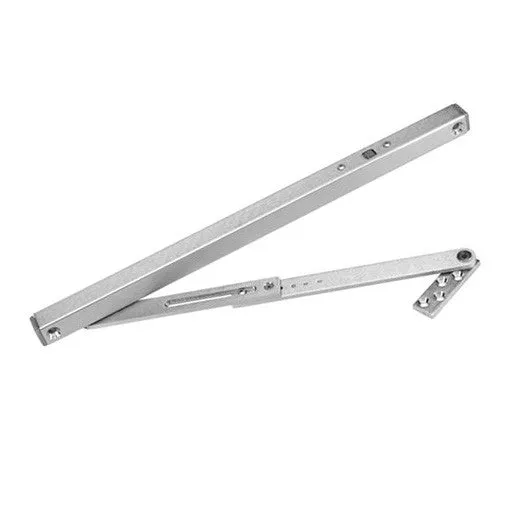

Name: ABH 9000A Surface Mount, Heavy Duty Adjustable Overhead Holder - Hold Open
SKU: 252154

Product Details ＋

The ABH 9000A Series is field-adjustable after installation from 85° to 110° (5° increments).

Hold Open Function – Door will stay held open at the selected degree of opening. Hold open adjustment screw controls the amount of force required to disengage the hold open mechanism.

Overhead holders and stops are used to prevent unnecessary damage to the door, frame, wall and other door hardware by limiting the degree of door swing. They are installed at the top of a door opening; therefore, out of the general reach and not a tripping hazard. Whether for commercial or residential application, the use of overhead holders and stops extends the life of the opening and other hardware.

This ABH Mfg. product is similar to products from Rixson, Sargent, Dorma, Glynn Johnson, and Rockwood. See the Cross Reference Chart in the ABH Catalog (under Downloads, below) for more information.

This item normally ships out within 2 weeks.

Surface mount
Heavy duty
Stop, hold-open and friction functions available
Single acting doors only
Non-handed
For interior or exterior use on frequent traffic and heavy weight doors
Degree of opening is field adjustable from 85° to 110° (5° increments)
Shock absorbing spring provides 3° to 5° cushion before dead-stop
Standard fasteners supplied with sex bolts for 1-3/4" to 2-1/4" thick door (see options for other door thickness)
UL Listed as Miscellaneous Fired Door Accessories for use on wood fire doors rated up to 90 minutes and metal fire doors rated up to 3 hours (Stop Function Only)
Average weight per unit = 6 lbs.

US32D Satin Stainless Steel

US10 Satin Bronze

US10B Dark Bronze

US26D Satin Chrome Plated

US4 Satin Brass

US26 Bright Chrome Plated

US3 Bright Brass

US32 Bright Stainless Steel

S1 Painted Aluminum

S2 Painted Brass (to match US4)

S3 Painted Bronze (to match US10)

S4 Painted Black

S5 Painted Dark Bronze (to match US10B)

S8 Painted White

CALL FOR PRICING

All Stainless Steel Components
Angle Jam Brackets
Use with Cam Lift Hinges
Hold Closed
Lead-lined
Less Spring
Security Fasteners (Specify Door & Frame Material)
Threaded Pivot Screw & Nylon Washer in Lieu of Jamb Bracket
Special Door Thickness
Contact us if the dimension, hardware or specifications differ from what is shown on the template or if additional hardware is being used at the top of the door. A custom template and/or unit may be required
